The STA M8 Male/Female SMD Socket Connector delivers high-performance PCB connections with 3, 4, 5, 6, and 8 pin options. Designed with pass-hole type installation, waterproof O-ring, hexagon nuts, corrugated gasket, and rubber core shielding, it ensures stable signal transmission and anti-vibration protection. Gold-plated angled pins enhance conductivity and reliability. Miniaturized yet robust, it supports plug-and-play installation and complies with IEC 61076-2-104 standards. Ideal for industrial automation, LED display systems, robotics, and electronic control circuits, the connector ensures safe, durable, and interference-free connections even in harsh environments.
Connector Type
M8 Male/Female SMD Socket Connector
Mounting Type
Pass Hole / SMD
Pin Count
3 / 4 / 5 / 6 / 8 pins
Gender
Male / Female
Cable Type
PVC / PU / TF / PE (optional)
Rated Voltage
1–3A (depending on pin count)
Contact Resistance
≤10mΩ
Insulation Resistance
≥100MΩ
Temperature Range
-25°C ~ +85°C
Rated Voltage
60V AC/DC
Socket
Front Mount Solder Type, Back Mount Solder Type and PCB board type
Shell Material
Brass nickel-plated / Zinc alloy nickel-plated
Contact Material
Brass / Phosphorus copper gold-plated
$0.00

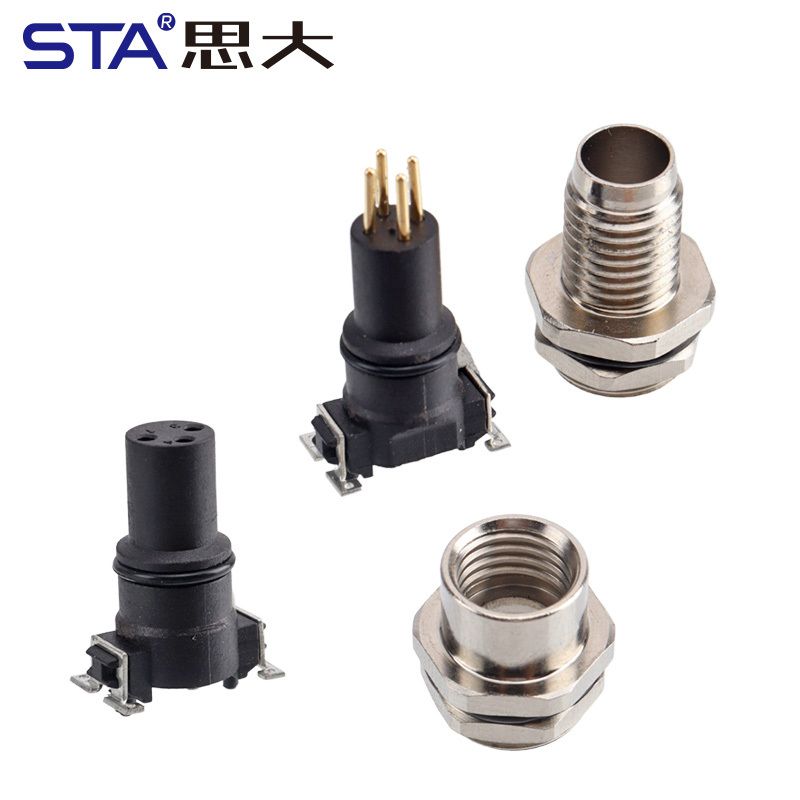

M8 Metal Socket:
Front Mount Male Shell (Screw M10)
Front Mount Female Shell (Screw M10)

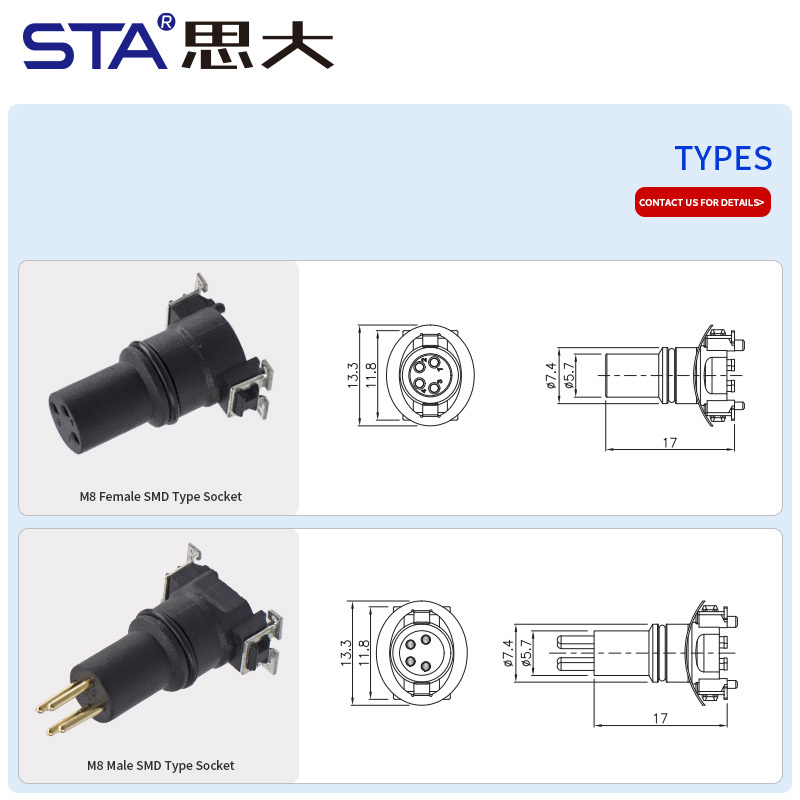

M8 Male SMD Type Socket
M8 Male SMD Type Socket(Front Mount Male Shell Screw M10)
M8 Female SMD Type Socket
M8 Female SMD Type SocketFront Mount Female Shell Screw M10)
Compact design with pass-hole type SMD socket allows efficient PCB mounting, saving space while providing reliable connections for high-density electronic circuits.
Waterproof and Durable

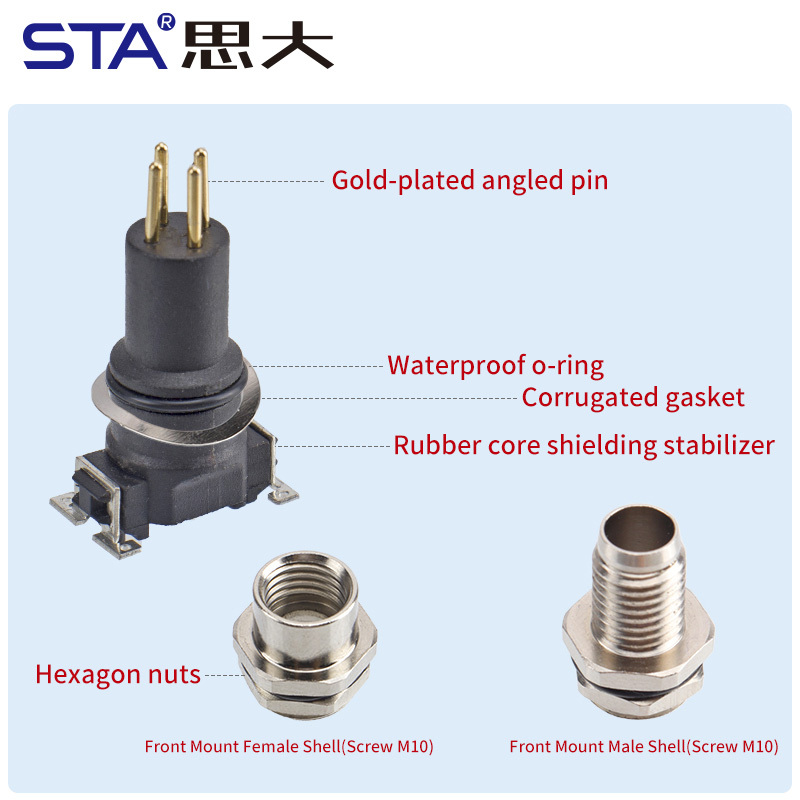

Equipped with O-ring, corrugated gasket, and hexagon nuts, it achieves high-level waterproof protection, preventing dust and moisture ingress in harsh industrial or outdoor environments.
Stable Signal Transmission
Rubber core shielding and gold-plated angled pins reduce interference, vibration effects, and signal loss, ensuring reliable data and power transmission.
Fire-Retardant and Safe
Constructed from fire-retardant materials, the connector maintains safety and operational stability even under high temperatures or electrical stress.
Plug-and-Play Convenience
Quick assembly and disassembly enable easy installation, maintenance, and replacement in industrial automation, robotics, and LED panel systems.
Product Uses
Industrial Automation
Ensures reliable power and signal connections for sensors, actuators, and automated machinery.
LED Display Boards
Supports stable and interference-free signal transmission in LED panels and control circuits.
Robotics and Miniaturized Devices
Ideal for compact robotic systems requiring miniaturized, vibration-resistant connectors.
Harsh Environment Applications
Waterproof, fire-retardant, and anti-vibration design allows operation in industrial or outdoor conditions.
PCB Signal and Power Integration
Provides efficient multi-pin connections for complex PCB circuits in industrial electronics.
