M5 IP67 Waterproof Connector: 3 4 Pin Panel Mount Socket with Wire

Name: M5 IP67 Waterproof Connector: 3 4 Pin Panel Mount Socket with Wire
Brand: STA 커넥터
Availability: InStock
Rating: 5 (1 reviews)

The M5 IP67 waterproof connector 3 4 pin series from STACONNECTOR is a premium miniature interconnect solution designed for high-density industrial environments. This M5 panel mount socket with wire features a pre-terminated 30cm lead, ensuring a plug-and-play experience that simplifies installation on control cabinets and sensor housings. Engineered with a precision screw-locking mechanism, our M5 circular connectors provide a secure, vibration-proof link for critical signal transmission. As a leading manufacturer, we offer both male and female configurations that meet rigorous IP67 standards, making them the ideal choice for outdoor sensors, medical devices, and compact automation hardware.

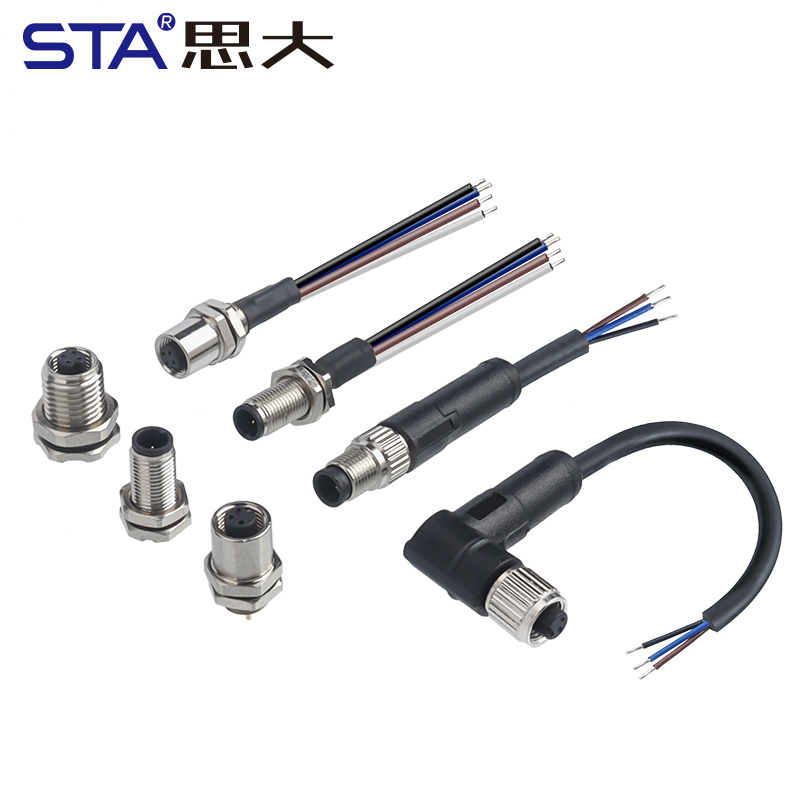

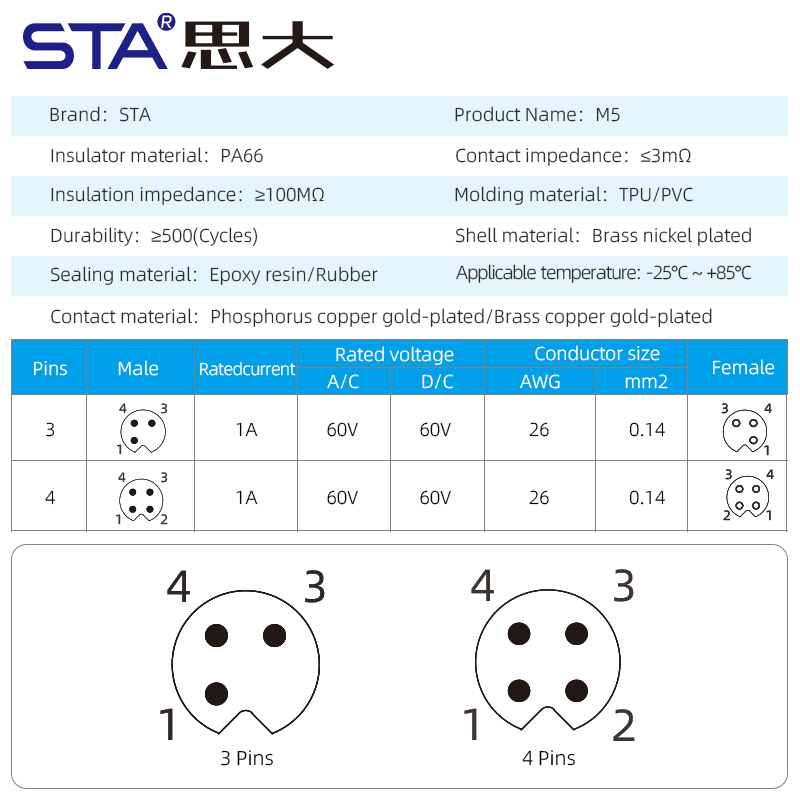

Connector Type

M5 Male/Female Solder Socket

Pin Count

3 / 4 pins

Gender

Male / Female

Mounting Type

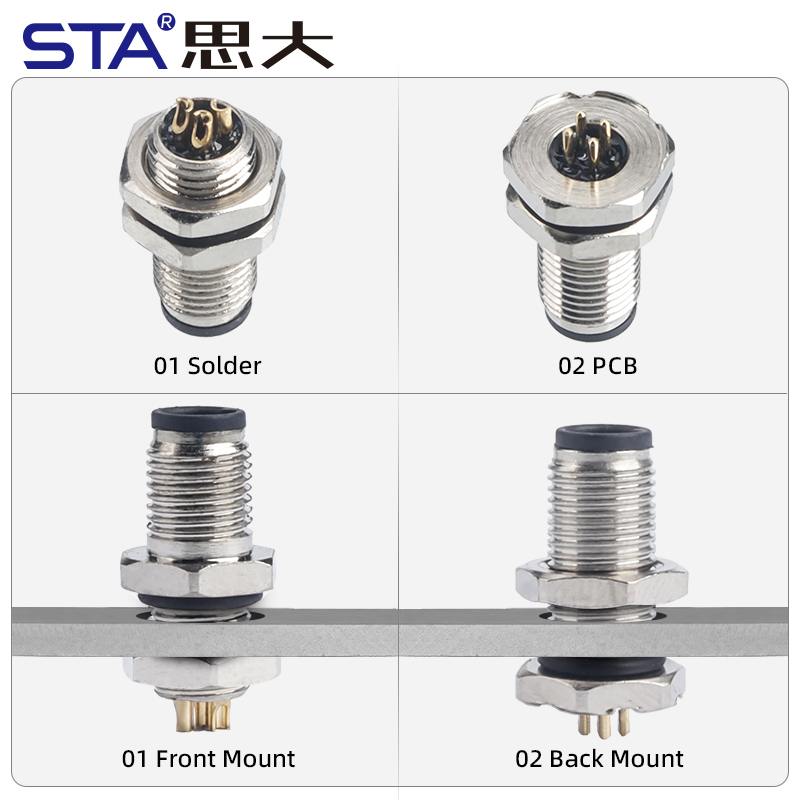

Front mount / Back mount

Termination Type

Solder / PCB type

Contact Material

Gold-plated brass

Rated Voltage

60V AC/DC

Contact Resistance

≤10mΩ

Insulation Resistance

≥100MΩ

Mating Cycles

≥500 cycles

Temperature Range

-25°C ~ +85°C

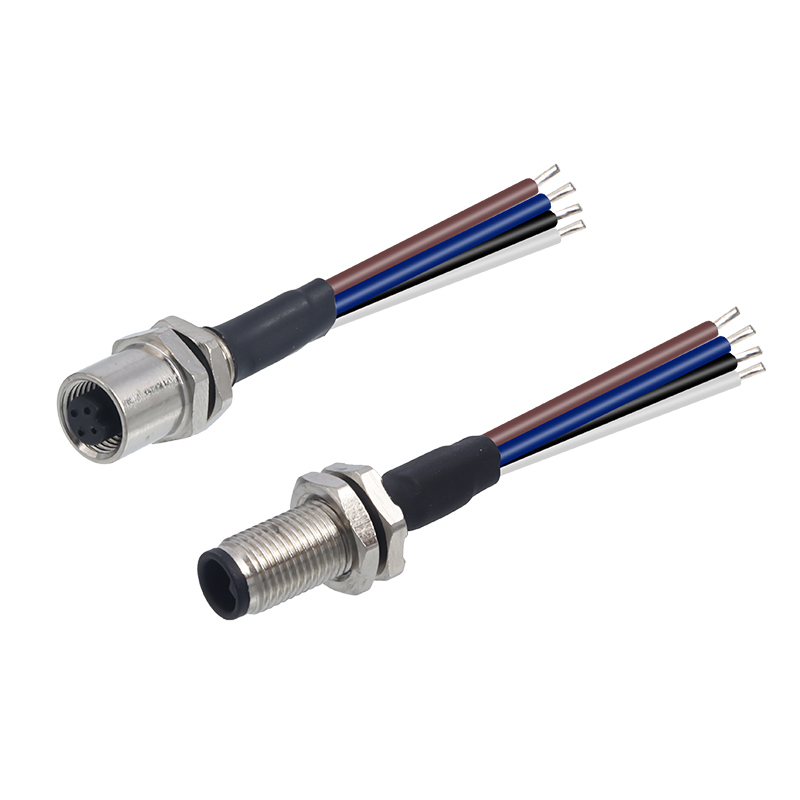

M5 Solder Receptacle:

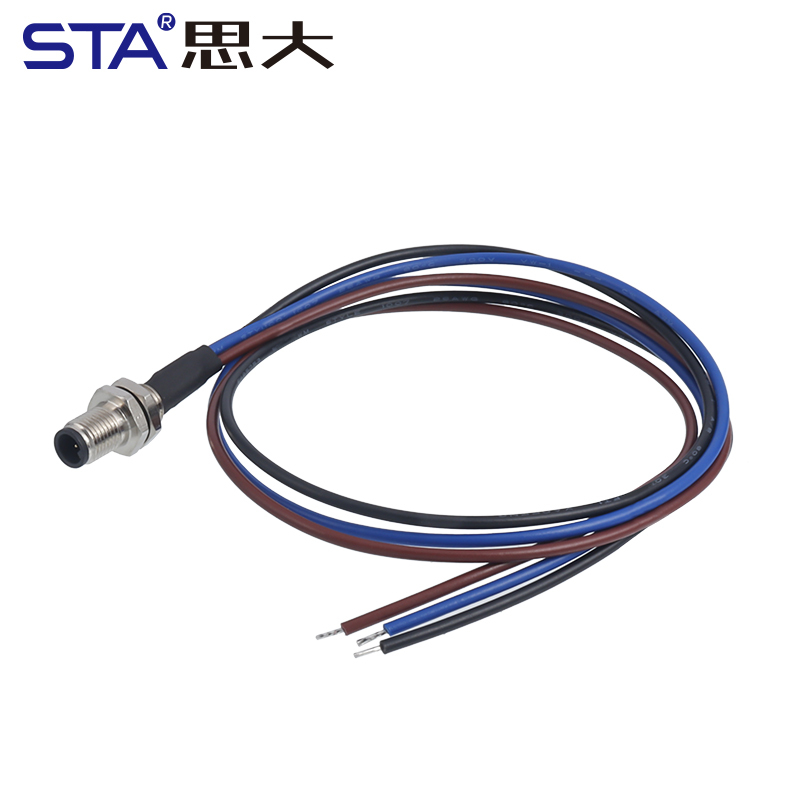

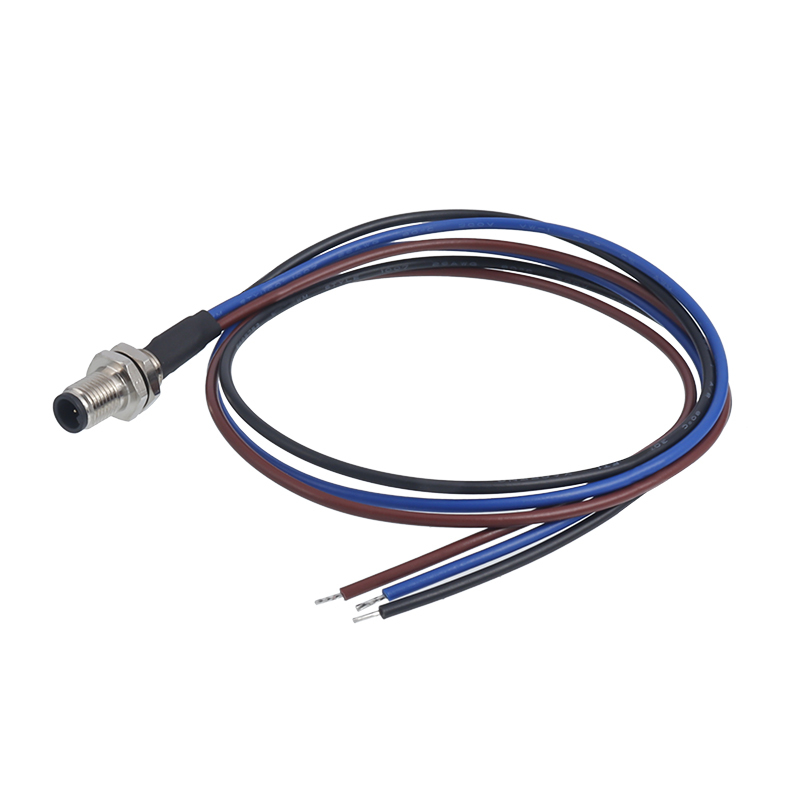

Front Mount Male Socket With 30CM Wire

Front Mount Female Socket With 30CM Wire

Back Mount Male Screw Socket With 30CM Wire

Back Mount Female Screw Socket With 30CM Wire

Pins:

3 pin

4 pin

type:

Socket

With 30cm Cable

견적 받기

설명

Integrated Pre-Wired Efficiency: This M5 panel mount socket comes with a standard 30cm high-quality tail wire, eliminating on-site soldering risks and significantly accelerating your production assembly timeline.
Reliable IP67 Waterproofing: Equipped with a high-performance O-ring seal, our M5 circular connector maintains a complete watertight barrier against dust and moisture, even in high-pressure washdown conditions.
Ultra-Compact Form Factor: The M5 threaded interface is specifically designed for space-constrained applications, allowing engineers to maximize port density on miniature electronic enclosures without sacrificing signal integrity.
Enhanced Signal Stability: Featuring gold-plated copper alloy contacts, these M5 3 pin 4 pin connectors ensure low contact resistance and excellent anti-corrosion properties for long-term industrial use.
Rugged Threaded Locking: The robust M5x0.5 metal locking nut provides superior mechanical retention, preventing accidental disconnection in high-vibration environments like robotic arms or mobile industrial machinery.

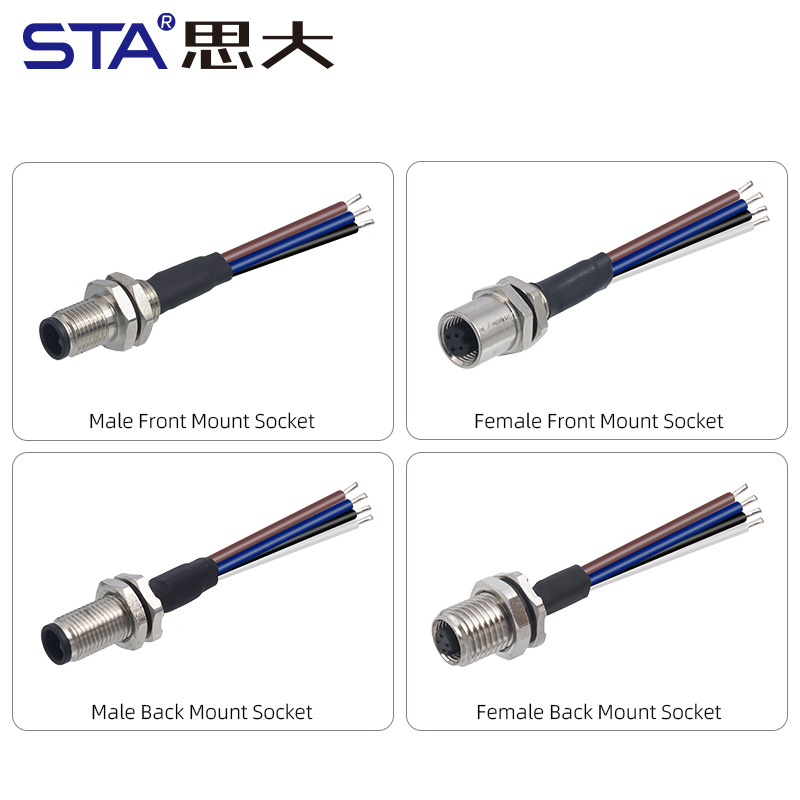

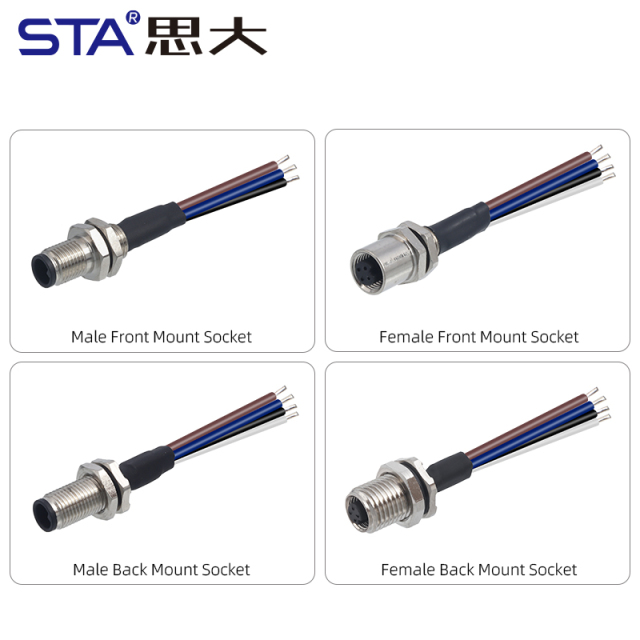

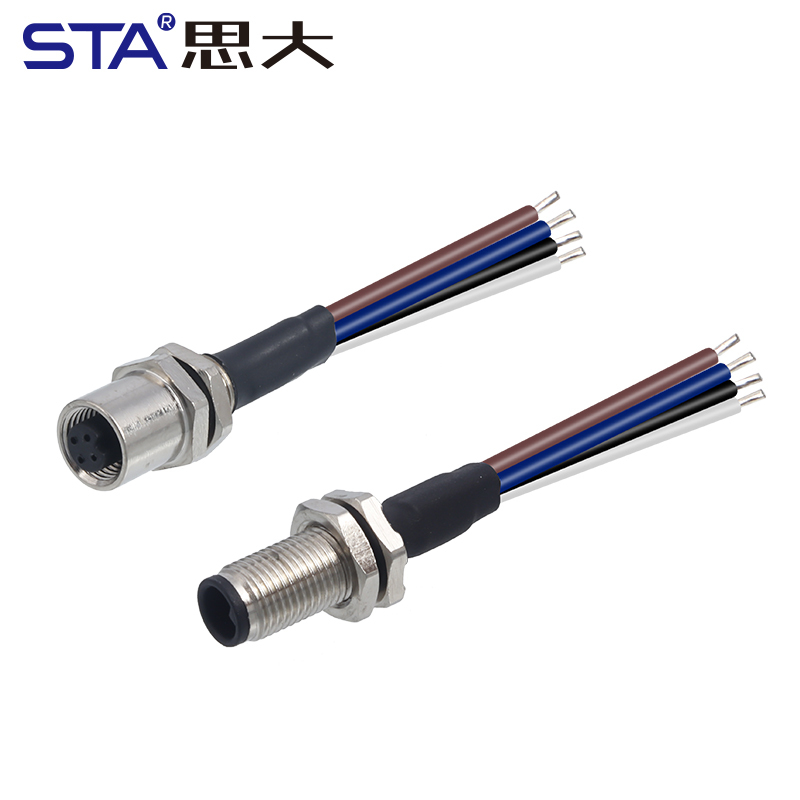

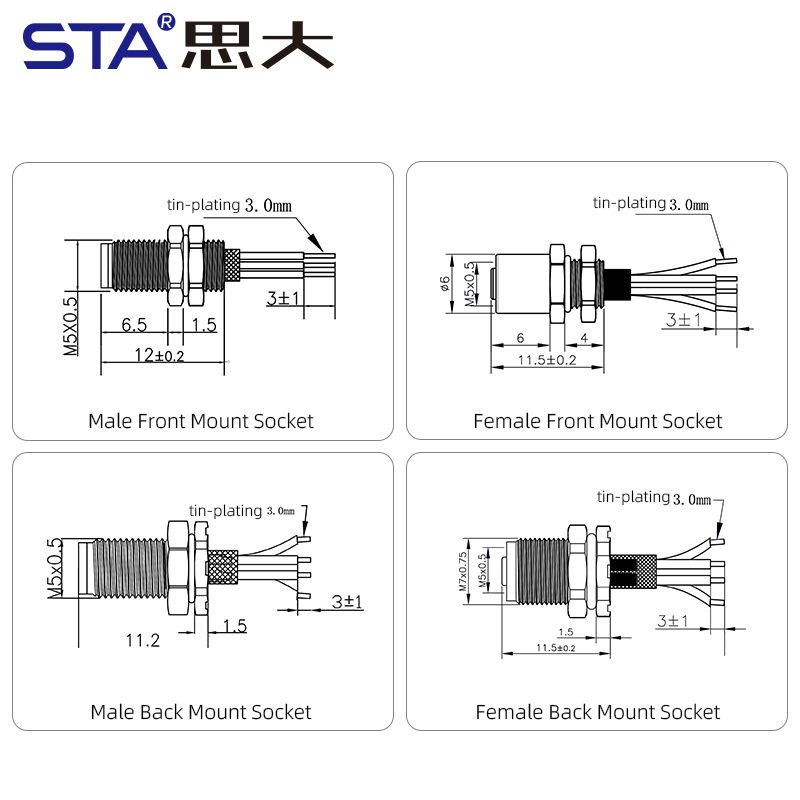

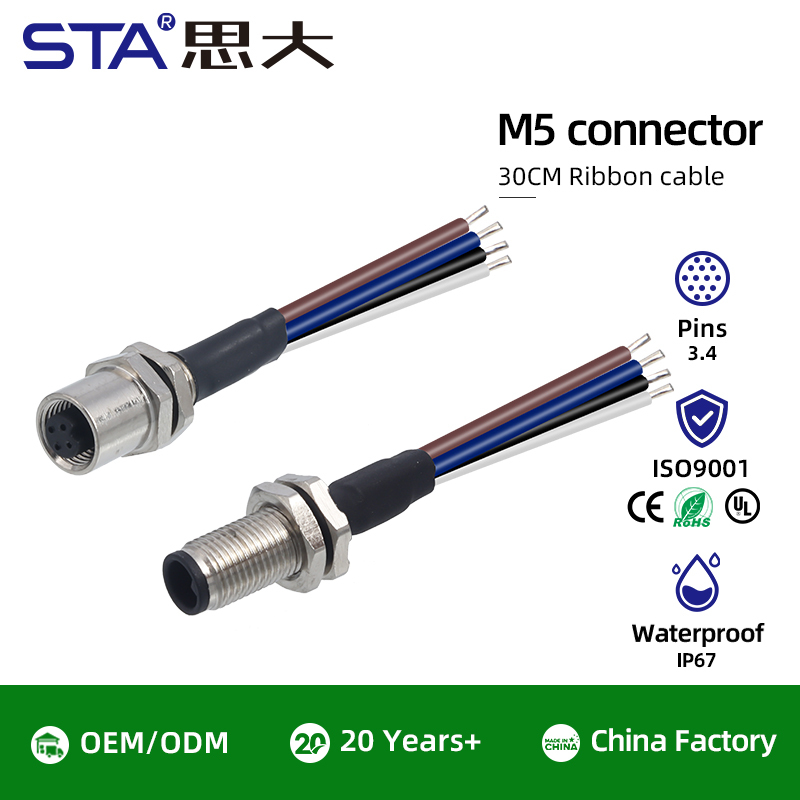

M5 Male Front Mount Socket ( Solder, Screw M5*0.5 )	M5 Female Front Mount Socket ( Solder )

M5 Male Back Mount Socket (Solder）	M5 Female Back Mount Socket (Solder)

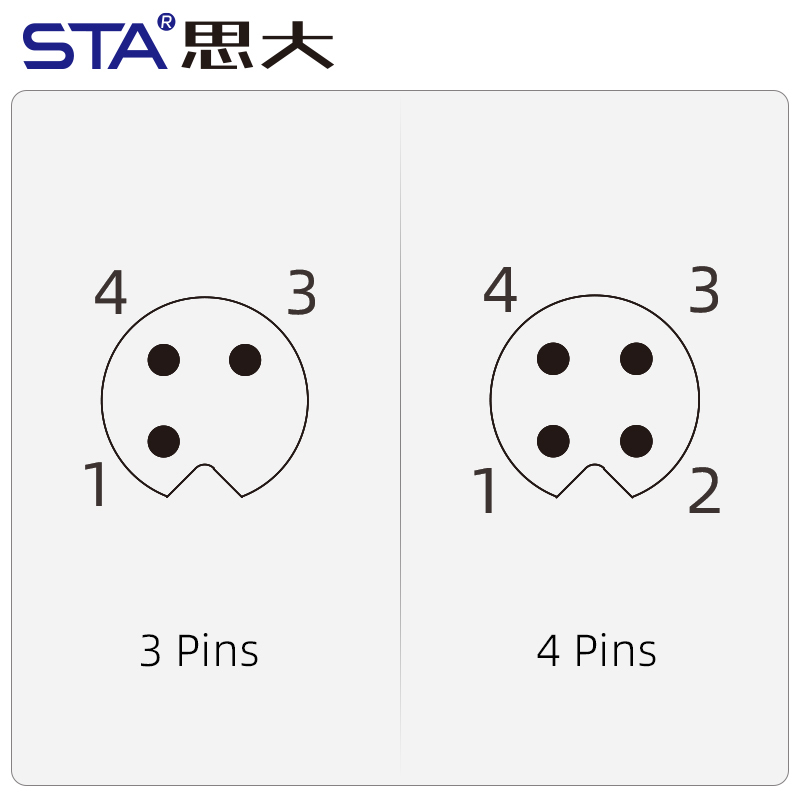

Wire Definition

Application

Miniature Industrial Sensors: Connecting proximity switches, laser sensors, and pressure transducers in tight spaces.
Medical Diagnostic Equipment: Providing a secure, compact data interface for portable medical monitoring devices.
Laboratory Instrumentation: Ideal for precision testing equipment requiring reliable, waterproof signal connections.
UAVs & Robotics: Integrated into small-scale drones and robotic joints for lightweight, high-performance power and signal delivery.
Compact LED Modules: Weather-sealed power input for architectural lighting and outdoor electronic signage.|

FAQ (Frequently Asked Questions)

1. Is the 30cm wire length fixed for the M5 panel mount socket?
No. While 30cm is our standard stock length, STACONNECTOR provides full customization services for any wire length, gauge, or jacket material (PVC/PUR) to fit your project.
2. Can I use this M5 connector for power transmission?
The M5 series is primarily designed for signal and low-current (1A) power. For high-power applications, we recommend checking our M12 or M16 series.
3. Is this M5 socket compatible with standard M5 sensor cables?
Yes, our M5 sockets are manufactured according to international IEC 61076-2-105 standards, ensuring 100% compatibility with all standard M5 male plugs.
