This waterproof HDMI panel connector with a threaded connection is designed for reliable video signal transmission in systems with increased protection requirements. Support for HDMI 4K and 8K, the 13/16"-28UNS standard, and an IP67 rating ensure reliable operation in industrial and outdoor environments.

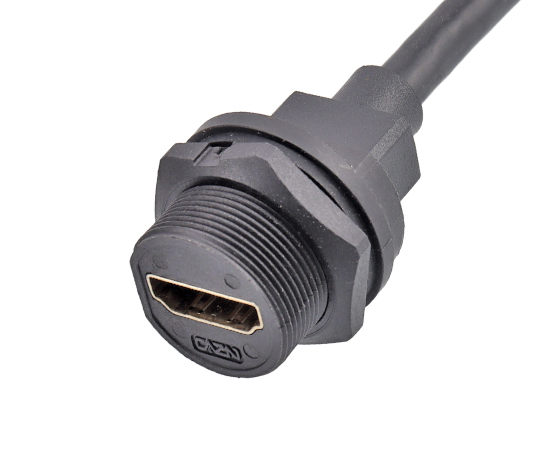

Secure panel-mount HDMI design
The back mount socket structure enables firm installation on equipment enclosures, reducing stress on the interface and improving long-term mechanical stability.
Supports HDMI 4K and 8K transmission
Designed for high-resolution video and audio signals, suitable for professional display systems, industrial monitors, and multimedia terminals.
Threaded coupling with 13/16"-28UNS
The threaded locking mechanism prevents accidental disconnection and ensures reliable signal continuity in vibration-prone environments.
IP67 waterproof protection
Sealed structure protects internal contacts from water, dust, and contaminants, making it ideal for outdoor and industrial applications.
Durable materials and long service life
PA66 housing combined with gold-plated copper contacts delivers low contact resistance and durability exceeding 500 mating cycles.

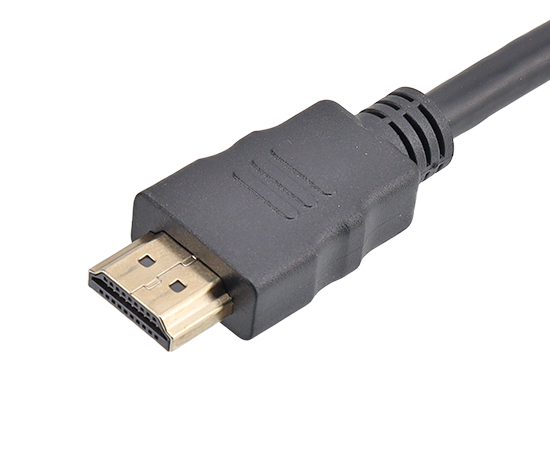

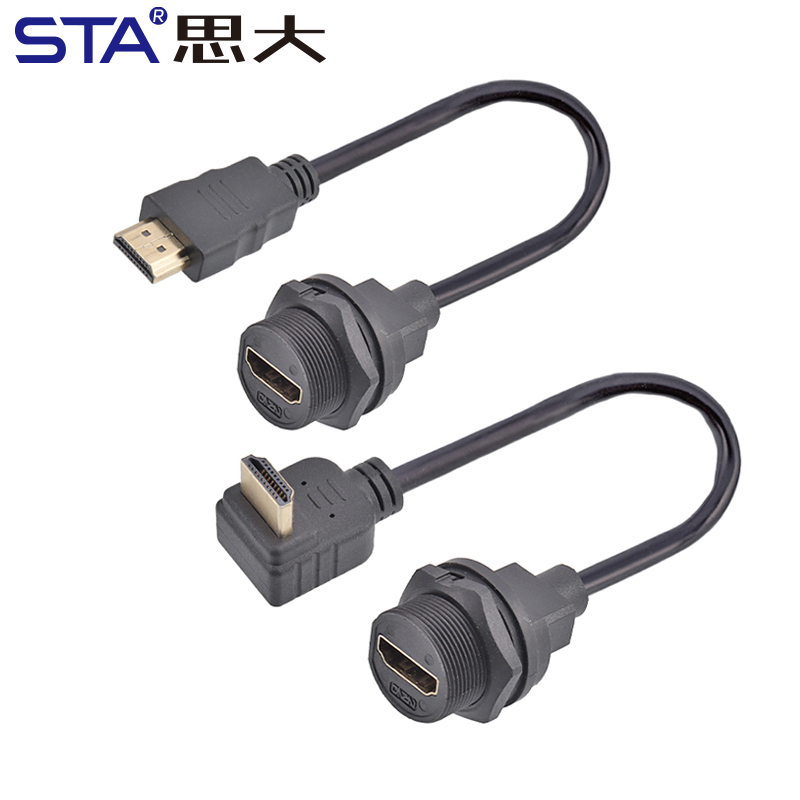

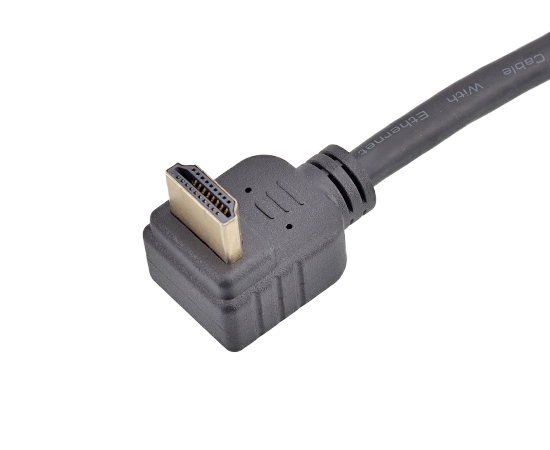

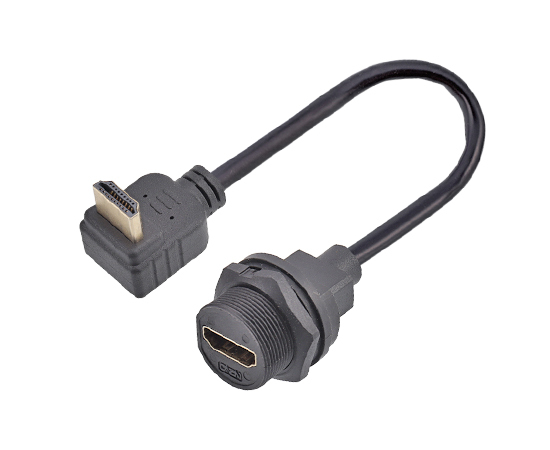

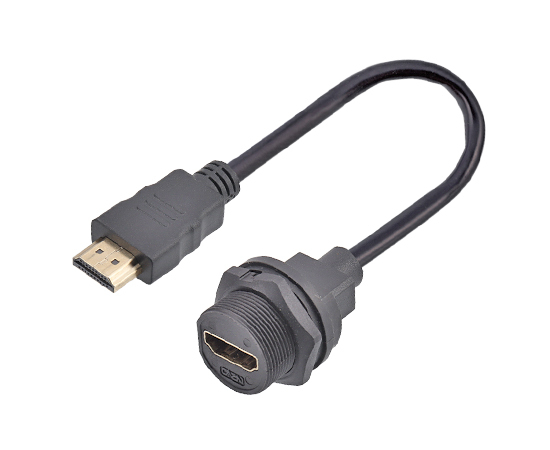

| HDMI Female Back Panel Mount Receptacle to Straight Male Cable (Threaded) | HDMI Female Back Panel Mount Receptacle to Right-Angle Male Cable (Threaded) |
 |
 |
| Plastic Material: | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material: | Copper gold-plated |
| Coupling: | Threaded(T); Bayonet(B) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Rated current： | 50 mA |
| Applicable temperature: | -40℃ ~ +105℃ |
| Specification: | 13/16"-28UNS |
| Waterproof grade: | IP67 |
Industrial control panels and enclosures
Outdoor LED displays and video walls
Surveillance and monitoring systems
Rugged multimedia terminals
OEM equipment requiring sealed HDMI ports
1. Does this HDMI receptacle support 8K resolution?
Yes, it supports both HDMI 4K and HDMI 8K signal transmission.
2. What is the benefit of a panel mount HDMI connector?
Panel mounting provides a secure interface, protects the cable connection, and improves overall system reliability.
3. Are right-angle HDMI cable options available?
Yes, both straight and right-angle male HDMI cable versions are offered.
4. Can it be used outdoors?
Yes, with IP67 protection, the connector is suitable for outdoor and harsh industrial environments.
